Features Introduced

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

  1. Auto positioning slitting system.
  2. Paper pre-press device.
  3. 3 times delivery device(no impression line).
  4. Collecting board pneumatic lifting device.

Partial Introduction

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

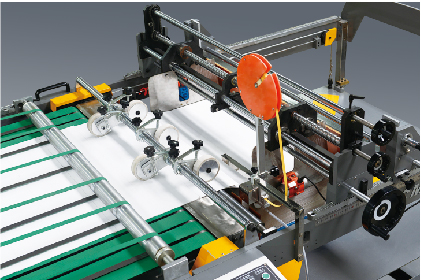

Paper pre-press device

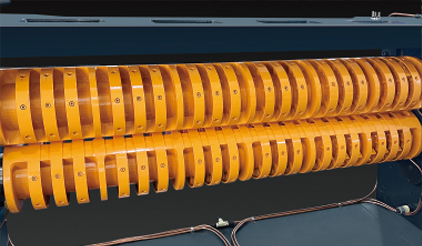

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

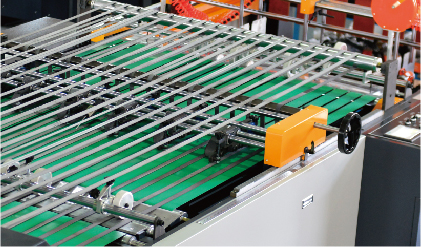

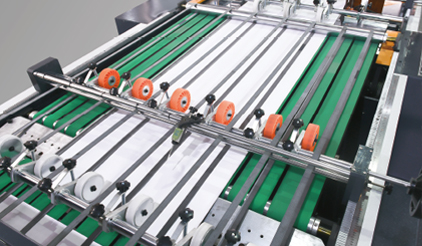

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight21000/23000/26000kgs
Full-load power75/88/88kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

Drawing

]]> SMC 1900 http://www.jxzhifu.com/en/?p=983 Wed, 07 Oct 2020 20:00:56 +0000 http://www.jxzhifu.com/?p=983

Features Introduced

Based on the technology of SM series Servo precision Double-helix High Speed Sheet Cutter Machine,SMC series equipped with more intelligent function and better technological innovation.

  1. Auto positioning slitting system.
  2. Paper pre-press device.
  3. 3 times delivery device(no impression line).
  4. Collecting board pneumatic lifting device.

Partial Introduction

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight28000kgs
Full-load power106kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

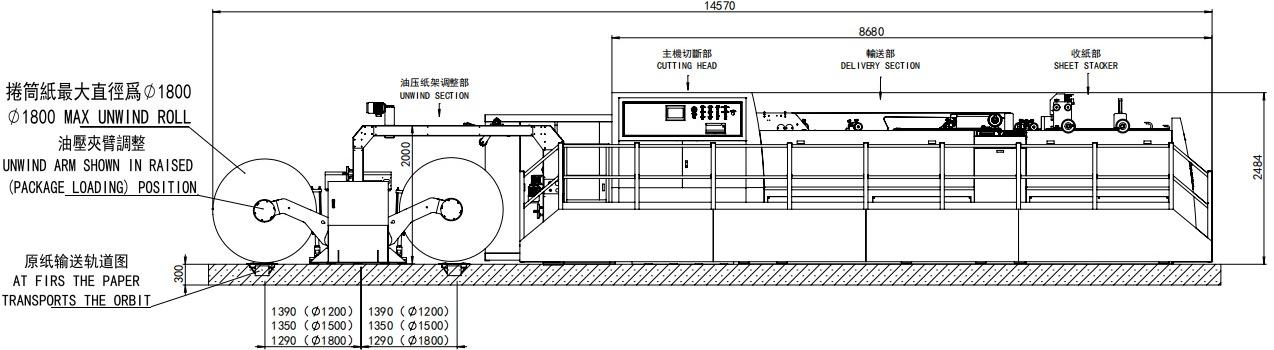

Drawing

]]> SMC-1100H/1500H/1700H http://www.jxzhifu.com/en/?p=12362 Thu, 10 Jul 2025 01:23:11 +0000 http://www.jxzhifu.com/en/?p=12362

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100H/1500H/1700H
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight23000/25000/28000kgs
Full-load power78/91/91kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

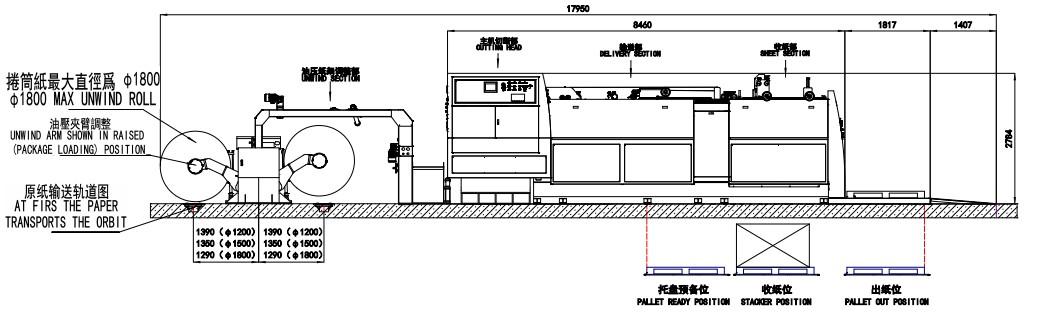

Drawing

]]> SMC-1900H http://www.jxzhifu.com/en/?p=12371 Thu, 10 Jul 2025 01:27:35 +0000 http://www.jxzhifu.com/en/?p=12371

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900H
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight30000kgs
Full-load power109kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

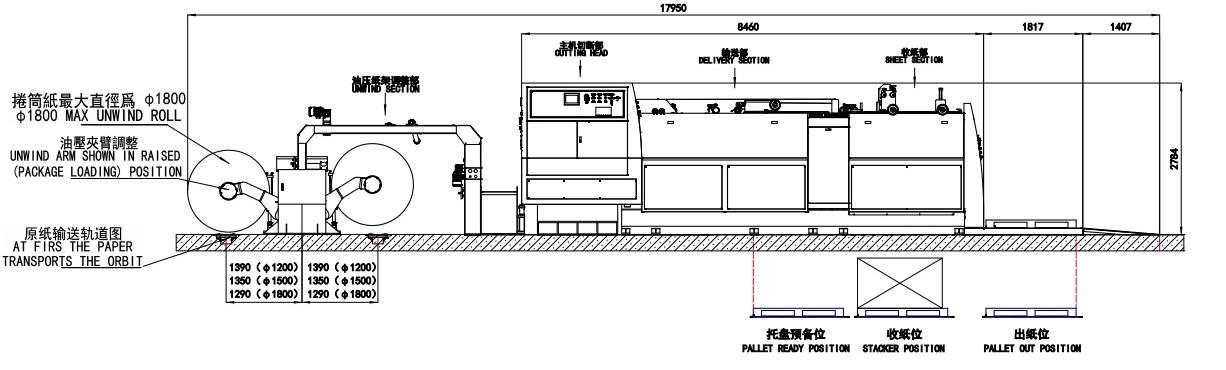

Drawing

]]> SMC 1100ZH/1500ZH/1700ZH http://www.jxzhifu.com/en/?p=5651 Sat, 11 Sep 2021 01:54:15 +0000 http://www.jxzhifu.com/en/?p=5651

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto splicer

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1100ZH/1500ZH/1700ZH
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight25000/27000/30000kgs
Full-load power81/94/94kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
600210350
650250380
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

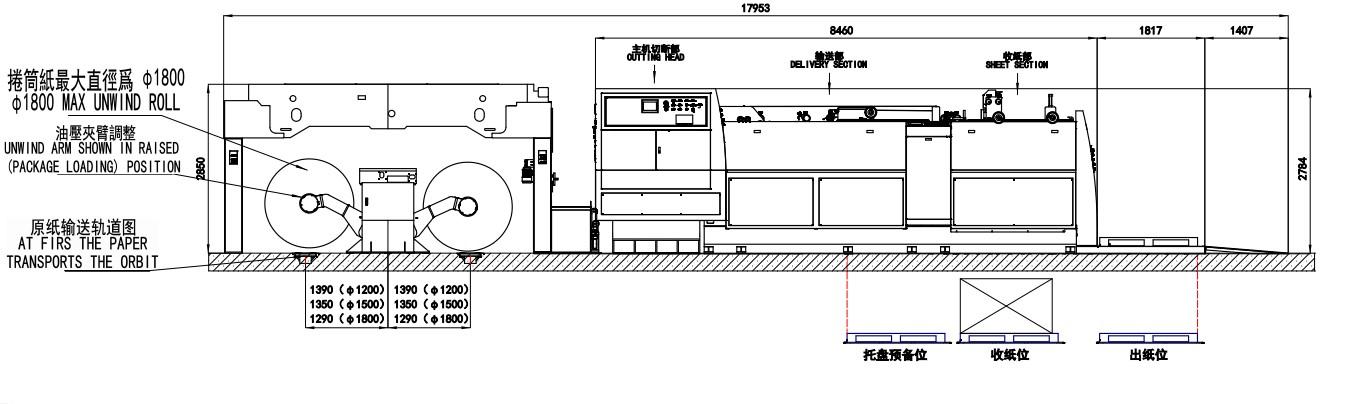

Drawing

]]> SMC 1900ZH http://www.jxzhifu.com/en/?p=967 Wed, 07 Oct 2020 19:48:08 +0000 http://www.jxzhifu.com/?p=967

Features Introduced

Based on SMC series Servo precision Double-helix High Speed Sheet Cutter Machine, this machine equipped with automatic splicer and pallet changer, which enable it realizing fully automatic operation, and embodied the intelligent and efficient technical characteristics of the machine.

Partial Introduction

Auto splicer

Auto pallet changer

Non-stop rolling curtain paper delivery device

Auto brake

Auto anti curve

Auto tension control

Auto edge position correction

Auto positioning slitting system

Paper pre-press device

Embedded double helix knife(invention patent)

Reject gate

Anti-static device

3 times delivery(no impression line)

Collecting board pneumatic lifting device

Siemens plc system

Main Technical Parameter

ModelSMC-1900ZH
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight32000kgs
Full-load power112kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

Drawing

]]> SMC-1100 http://www.jxzhifu.com/en/?p=7507 Mon, 28 Aug 2023 10:44:29 +0000 http://www.jxzhifu.com/en/?p=7507

Features Introduced

SMC-1100 Cigarette Packing Servo Precision Double-Helix High Speed Sheet Cutter Machine With Photoelectric Tracking is a high-precision and efficient sheet cutter equipment developed by our company.This machine adopts several edge position correction function,embedded double-helix design, non-stop rolling curtain paper delivery device, is easy to operate.The photoelectric tracking cutting accuracy is within ≤± 0.1mm,the edge of cutting paper is smooth without crude or powder.It is the most ideal photoelectric tracking sheet cutting machine in cigarette packing printing industry at present.

Partial Introduction

Slitting system

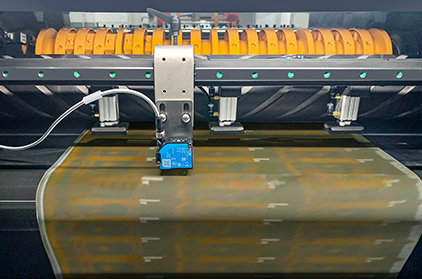

Photoelectric tracking system

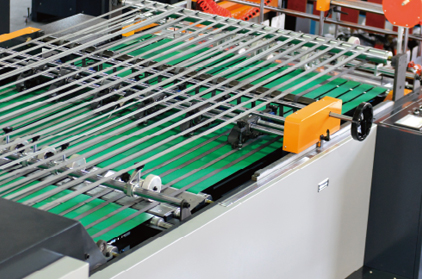

3 times delivery (No impression line)

Non-stop rolling curtain paper delivery device

Main Technical Parameter

ModelSMC-1100
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1450mm
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. photoelectric tracking cutting meter speed150m/min
Max. photoelectric tracking cutting speed220cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
Max. paper piling height1400mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W.18000kgs
Full-load Power75kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210

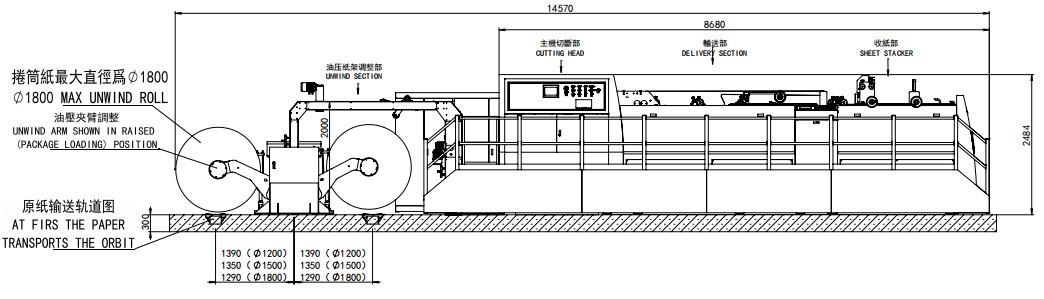

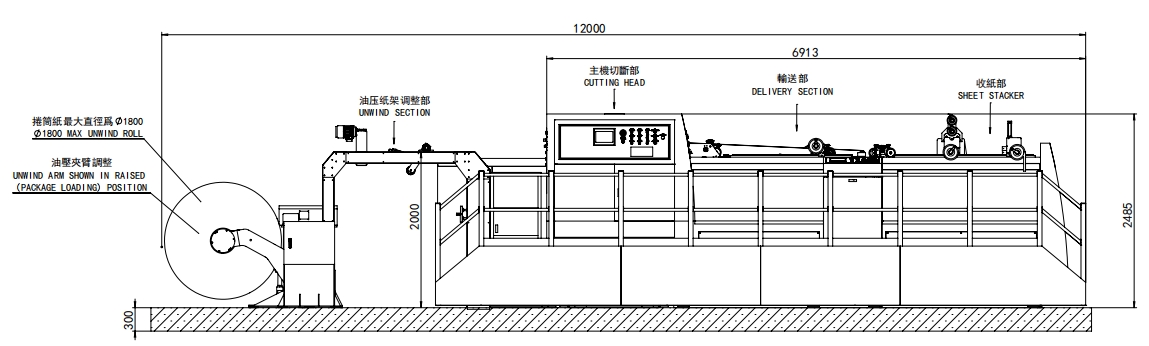

Drawing

]]> SM 1100/1500/1700 http://www.jxzhifu.com/en/?p=5679 Sat, 11 Sep 2021 02:17:35 +0000 http://www.jxzhifu.com/en/?p=5679

Features Introduced

SM-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Auto anti curve

Auto edge position correction

Three sets of slitting knife are used for trimming and middle slitting

Embedded double helix knife(invention patent)

Anti-static device

Conveying unit

Main Technical Parameter

ModelSM-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330 m/min
Max. cutting speed540 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight18000/20000/23000kgs
Full-load power69/82/82kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450125275
500160315
550190350
600210350
700290410
750330440
800330410
900330365
1000330330
1100310280
1200300250
1300300230
1400300210
1500300195
1600300188
1650300185

Drawing

Double Roll

Four Rolls

]]> SM 1900 http://www.jxzhifu.com/en/?p=1038 Thu, 08 Oct 2020 09:40:01 +0000 http://www.jxzhifu.com/?p=1038

Features Introduced

SM-1900 Servo Precision Double-Helix High Speed Sheet Cutter Machine apply the advanced technique of Germany and Italy, combining with the rich experience and leading manufacturing techniques of our senior engineers to build and launch a new generation of sheet cutter equipment. This machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. It is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Auto anti curve

Auto edge position correction

Three sets of slitting knife are used for trimming and middle slitting

Embedded double helix knife(invention patent)

Anti-static device

Conveying unit

Main Technical Parameter

ModelSM-1900
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precisionCutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed300 m/min
Max. cutting speed385 cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1900(75”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220VⅩ50Hz
Gross weight25000kgs
Full-load power100kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450100210
500110220
600155260
700230320
750290385
800300380
900300345
1000300300
1100290265
1200280235
1300260210
1400260190
1500260175
1600250160
1650250155

Drawing

Double Roll

Four Rolls

]]> KMC-1100/1500/1700 http://www.jxzhifu.com/en/?p=9474 Tue, 13 May 2025 05:37:31 +0000 http://www.jxzhifu.com/en/?p=9474

Features Introduced

KMC-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. lt is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Embedded double helix knife(invention patent)

Auto positioning slitting system

3 times delivery (No impression line)

Non-stop rolling curtain paper delivery device

Main Technical Parameter

ModelKMC-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting2 sheet(Optional)
Cutting precision (1 roll)Cutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. scroll diameter1500mm(KMC-1100)
1800mm(KMC-1500/1700)
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W. (1 roll)18000/20000/23000kgs
Full-load Power75/88/88kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210
1650335210

Drawing

KMC-1500

KMC-1700

]]> KM-1100/1500/1700 http://www.jxzhifu.com/en/?p=7520 Mon, 28 Aug 2023 10:56:35 +0000 http://www.jxzhifu.com/en/?p=7520

Features Introduced

KM-1100/1500/1700 Servo Precision Double-Helix High Speed Sheet Cutter Machine adopts double-helix design, the edge of cutting paper is smooth without crude or powder, what’s more, with the feature of high cutting precision makes sure paper after cutting can be directly used on printing machines, which help to reduces the production cost and improve production efficiency. lt is the most popular and ideal cutting machine in paper making and printing industry at present.

Partial Introduction

Embedded double helix knife (Invention patent)

Slitting knifes (Optional)

Conveying unit

Main Technical Parameter

ModelKM-1100/1500/1700
Model of cutting paperDouble rotary sheeter
Thickness of cutting paper80-1000GSM
Cutting length range450-1650mm
The format of slitting1 sheet(Optional)
Cutting precision (1 roll)Cutting length≤1000mm: ±0.1mm
Cutting length＞1000mm: ±0.1%
Max. cutting meter speed330m/min
Max. cutting speed540cuts/min
Max. scroll diameter1500mm(KM-1100)
1800mm(KM-1500/1700)
Max. paper cutting width1100(45”)mm
1500(59”)mm
1700(67”)mm
Max. paper piling height1600mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
G.W. (1 roll)16000/18000/21000kgs
Full-load Power69/82/82kw
Cutting Length(mm)Speed(m/min)Speed(cuts/min)
450195435
500240480
600325540
700330475
800330410
900325365
1000310310
1100300275
1200300250
1300305235
1400315235
1500330220
1600335210
1650335210

Drawing

KM-1100

]]> GM 1100/1500/1700/1900 http://www.jxzhifu.com/en/?p=1043 Thu, 08 Oct 2020 10:19:40 +0000 http://www.jxzhifu.com/?p=1043

Features Introduced

GM-1100/1500/1700/1900 Servo Precision High Speed Sheet Cutter apply the advanced techinque of Germany and England. The machine computer control system apply servo motor and AC transducer which are both international of top brand. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINDEVA from Switzerland. The electrical system adopts MOELLER&OMRON. The speed of cutting paper is so fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touchscreen makes the operation easy. The anti-curve rack assurethe paper flat. This machine is the paper processing machine which is very popular in the paper making and printing industry. It can improve the efficiency and benifit of your work.

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Main Technical Parameter

ModelGM-1100/1500/1700/1900
Model of cutting paperThe up knife cut reciprocally and the down knife is fixed
Thickness of cutting paper60-550GSM
Cutting length range450-1600mm
The format of slitting2 sheet
Cutting precisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. cutting meter speed350m/min
Max. cutting speed400cuts/min
Max. scroll diameter1800mm
Max. paper cutting width1100mm/1500mm/1700mm/1900mm
Max. paper piling height1500mm
The request for air compressor0.8Mpa
Power consumption380V/220V×50Hz
Gross weight11000kgs/13000kgs/15000kgs/17000kgs
Full-load Power22/26/30/35kw
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Equipment of electrostatic elimination1SET
Middle slitting and waste collection system1SET
Automatic counting and label inserting equipment1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Double arm oil pressure shaftless mill roll stand1SET
Automatic directing and paper tension controller1SET
Equipment of automatic vacuum1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

Double Roll

Four Rolls

]]> CM 1100A/1500A/1700A/1900A http://www.jxzhifu.com/en/?p=1051 Thu, 08 Oct 2020 13:35:02 +0000 http://www.jxzhifu.com/?p=1051

Features Introduced

CM-1100/1500/1700/1900A Servo Precision Sheet Cutter apply the advanced technique of Germany and England. The computer control system apply AC servo motor and AC transducer. The conveyer belt apply NITTA from Japan. The pneumatic vibrator apply FINOLEVA from Switzerland. The electrical system adopts MOELLER&OMRON, the speed of cutting paper is fast and stable. Germany precise bearing and cutting knife assure the high cutting precision. The touch screen makes the operation easy. The anticurve rack assures the paper flat. The machine is very popular in the paper making and printing industry.

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Automatic stacker

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550GSM
Cutting Length Range450-1650mm
The format of slitting1 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed300m/min
Max. Cutting Speed400cuts/min
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight9000kgs/11000kgs/13000kgs/15000kgs
Full-load Power22/26/30/35KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> CM 1100A/1500A/1700A/1900A http://www.jxzhifu.com/en/?p=2125 Sat, 14 Nov 2020 10:49:02 +0000 http://www.jxzhifu.com/?p=2125

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Automatic stacker

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550GSM
Cutting Length Range450-1650mm
The format of slitting2 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed300m/min
Max. Cutting Speed400cuts/min
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight11000kgs/13000kgs/15000kgs/17000kgs
Full-load Power26/30/34/39KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> CM 1100A/1500A/1700A/1900A http://www.jxzhifu.com/en/?p=1063 Thu, 08 Oct 2020 13:46:17 +0000 http://www.jxzhifu.com/?p=1063

Partial Introduction

Auto anti curve

Paper pre-press device

Three sets of slitting knife are used for trimming and middle slitting

Cutting knife unit

Anti-static device

Conveying unit

Automatic stacker

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550GSM
Cutting Length Range450-1650mm
The format of slitting4 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm
Cutting length>1000mm: +/-0.1%
Max. Cutting Meter Speed300m/min
Max. Cutting Speed400cuts/min
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight13000kgs/15000kgs/17000kgs/19000kgs
Full-load Power31/35/39/44KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

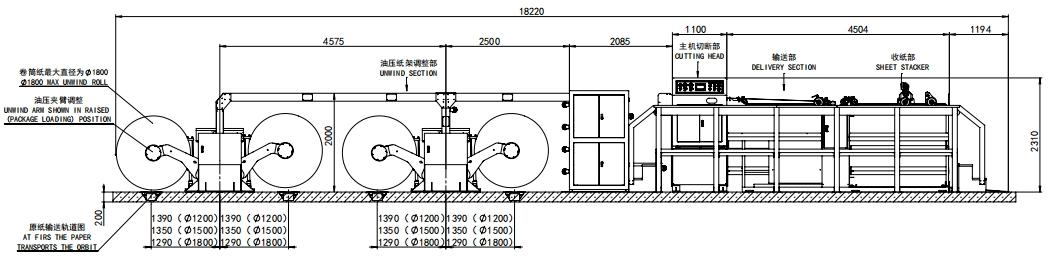

Drawing

]]> CM 1100A/1500A/1700A/1900A http://www.jxzhifu.com/en/?p=1065 Thu, 08 Oct 2020 13:55:22 +0000 http://www.jxzhifu.com/?p=1065

Partial Introduction

Photoelectric tracking system

Edge posltion controller system

Fast sheet cutter

Main Technical Parameter

ModelCM-1100/1500/1700/1900A
Model Of Cutting PaperThe up knife cut reciprocally and the down knife is fixed
Thickness Of Cutting Paper60-550g
Max. Scroll Diameter1800mm
Max. Paper Cutting Width1100mm/1500mm/1700mm/1900mm
Cutting Length Range450-1650mm
The format of slitting1 sheet(Optional)
Cutting PrecisionCutting length≤1000mm: +/-0.5mm; Cutting length>1000mm: +/-0.1%
Max. Cutting Speed300cuts/min
Max. Cutting Meter Speed300m/min
Max. Paper Piling Height1500mm
The Request For Air Compressor0.8Mpa
Power Consumption380V/220V×50Hz
Gross Weight9000kgs/11000kgs/13000kgs/15000kgs
Full-load Power22/26/30/35KW
High-precision single knife cutting machine1SET
Paper prismatic automatic adjustment system1SET
Paper transporting equipment1SET
Automatic paper trimming and collecting machine1SET
Electrical controlling system1SET
Driving motor system1SET
Accessory by machine1SET
Cone sheftless mill roll stand1SET
Paper tension controller1SET
Operation system:LCD panel by operator1SET
Main drive system:AC servo motor1SET

Our company reserves the right to change technical parameter without futher notice.

Drawing

]]> 亚洲做受高潮欧美裸体 | 国产91精品在线观看 | 色97在线 | 亚欧日韩成人h片 | 婷婷激情综合网 | 中文在线亚洲 | 国产精品成人久久久 | 日韩啪啪小视频 | 天天草综合网 | 国模精品一区二区三区 | 91秒拍国产福利一区 | 国产一区二区精 | 色婷婷狠狠五月综合天色拍 | 色婷婷狠狠五月综合天色拍 | 中文字幕在线日 | 丁香午夜| 日韩av中文在线观看 | 人人干人人添 | av亚洲产国偷v产偷v自拍小说 | 久久天堂亚洲 | 美女视频a美女大全免费下载蜜臀 | 久草视频免费观 | 91精品久久久久久 | 国模精品一区二区三区 | 日本电影黄色 | 国产在线观看不卡 | 久久色视频 | 在线观看国产区 | 青青河边草手机免费 | 国产女人18毛片水真多18精品 | 久久久午夜影院 | 99久久精品国产网站 | 成人免费视频在线观看 | 日日干综合 | 黄色av电影网| 人人干干人人 | 国产精品久久久久久久久久尿 | 中文在线天堂资源 | 国产成人中文字幕 | 探花视频在线观看免费版 | 免费观看性生活大片 | 天天性天天草 | 日韩视频在线播放 | 天天干.com | 日韩精品中文字幕在线不卡尤物 | www.久久99| 国产精品一区二区三区在线免费观看 | 国产欧美日韩一区 | 婷婷免费视频 | 亚洲丝袜中文 | 日本不卡一区二区 | 久久99久久精品 | 射射色 | 黄色福利网 | 久久久久久久久久久久99 | 欧美久久99 | 一区二区三区四区精品 | 国产美女网站在线观看 | 欧美成人精品欧美一级乱 | 久久激情视频 久久 | 国产精品久久久久久欧美 | 黄色国产精品 | 西西4444www大胆视频 | 天天干,天天射,天天操,天天摸 | 欧美 日韩 国产 成人 在线 | 国产一级淫片免费看 | 蜜臀av性久久久久蜜臀aⅴ四虎 | 国产精品99久久免费观看 | 日本在线成人 | a午夜电影 | 国产精品久久久一区二区 | av福利免费 | 亚洲精品国产自产拍在线观看 | 久久精品网站视频 | 亚洲综合色网站 | 欧美极品在线播放 | 日韩欧美精品一区二区三区经典 | 免费能看的av | 热久久这里只有精品 | 欧美性猛片, | 欧美成人精品欧美一级乱黄 | 亚洲高清精品在线 | 一本一道久久a久久精品蜜桃 | 超碰精品在线 | 久久国产网 | 国产九九九九九 | 黄色片亚洲 | 亚洲专区欧美专区 | 一区三区视频 | 成年人黄色免费看 | 日韩v欧美v日本v亚洲v国产v | 黄色字幕网 | 亚洲精品高清视频 | 中文字幕在线免费看 | 波多野结衣最新 | 99久久这里有精品 | 免费日韩视频 | 国产视频一区二区在线播放 | 天天天天爱天天躁 | 免费国产在线视频 | 九九视频一区 | 在线视频一区二区 | 91日韩精品一区 | 日韩一区二区三区高清免费看看 | 亚洲国产一区av | 亚洲免费一级 | 国产1区2 | 亚洲 成人 一区 | 久久久国内精品 | 999成人网| 亚洲理论电影 | 中文字幕日本在线 | 91网在线| 麻豆极品 | 久草在线最新免费 | 国精产品一二三线999 | 色播六月天 | 午夜av激情| 午夜丁香视频在线观看 | 97电影在线 | 欧美一级片在线 | 在线观看一区二区精品 | 337p日本大胆噜噜噜噜 | 成人a级黄色片 | 中文字幕亚洲欧美日韩 | 最新中文字幕在线观看视频 | 国产精品免费看久久久8精臀av | 少妇bbb搡bbbb搡bbbb | 国产精品久久久电影 | 91在线观看视频网站 | 日韩中文在线视频 | 国产一级二级三级在线观看 | 国产精品理论片在线播放 | 午夜精品一区二区国产 | 最近中文字幕高清字幕在线视频 | 亚洲国产精久久久久久久 | 中文字幕久久精品亚洲乱码 | 麻豆国产精品va在线观看不卡 | 亚洲欧美日韩国产精品一区午夜 | 亚洲综合在 | 狠狠狠狠狠狠狠干 | 天天激情 | 五月婷婷av在线 | 久久久久97国产 | 国产中文字幕在线免费观看 | 久草在线手机视频 | 色综合狠狠干 | 亚洲欧美日本一区二区三区 | 亚洲女人天堂成人av在线 | 日本高清中文字幕有码在线 | 国产在线观看 | 久久久精华网 | 久久亚洲在线 | 日韩精品网址 | 激情五月婷婷综合网 | 久久人人97超碰精品888 | 精品福利网 | 久久午夜免费观看 | 亚洲h在线播放在线观看h | www.久草视频 | 日韩在线观看视频免费 | 日本中文字幕在线视频 | 亚洲免费小视频 | 国产福利不卡视频 | 国产成人久久av免费高清密臂 | 91精品91 | 精品99在线视频 | 婷婷精品在线 | 成人免费一级 | 中文字幕精品三区 | 国产精品美女久久久久aⅴ 干干夜夜 | 视频在线一区 | 婷婷丁香色 | 五月天婷婷综合 | 久久深夜 | 国产在线精品福利 | 亚洲一区二区三区miaa149 | 日本精品视频在线观看 | 国产123av| 久久免费视频这里只有精品 | 天天操天天干天天玩 | 欧美国产日韩一区二区 | 日韩国产精品久久久久久亚洲 | 蜜臀一区二区三区精品免费视频 | 国产午夜麻豆影院在线观看 | 91精品久久久久 | 日本三级久久 | 97超碰免费在线观看 | 中文字幕在线专区 | 草久视频在线观看 | 激情视频免费观看 | 一区二区三区视频在线 | 中文字幕观看av | 91亚洲国产成人 | 国产在线观看你懂得 | 国产精品久久久久影视 | 91精品国产亚洲 | 国产免费一区二区三区最新6 | 久久手机免费观看 | 69国产精品视频免费观看 | 黄色免费网 | 在线v片免费观看视频 | 麻豆精品国产传媒 | 91网免费看| 九九热99视频 | 国产精品淫 | 亚洲香蕉视频 | 精品国产一区二 | 91视频免费视频 | 日本久久久久久久久久 | 国产精品美女 | 开心丁香婷婷深爱五月 | 草免费视频 | 国产韩国日本高清视频 | 国产人成精品一区二区三 | 国产亚洲欧美在线视频 | 亚洲色影爱久久精品 | 中文字幕在线专区 | 国产一级电影 | 久久高清国产视频 | 免费看黄电影 | 久草在线视频国产 | 国产高清在线视频 | 日韩欧美在线播放 | 黄色av大片 | 色成人亚洲网 | 一级成人免费视频 | 91新人在线观看 | 久久电影中文字幕视频 | 日韩 国产| 国产91电影在线观看 | 伊甸园永久入口www 99热 精品在线 | 欧美aaa一级 | 五月香婷 | 中文字幕亚洲国产 | 狠狠干天天操 | 久久九九视频 | 国产精品岛国久久久久久久久红粉 | 国产一级片视频 | 久久久久久久久久久久久影院 | av一级网站 | 九九亚洲精品 | 欧美在线91 | 久久久国产毛片 | 国产午夜精品一区二区三区在线观看 | 午夜 在线 | 狠狠狠色狠狠色综合 | 国产日产精品一区二区三区四区的观看方式 | 久草男人天堂 | 人人看看人人 | 亚洲japanese制服美女 | 在线 精品 国产 | 中文字幕在线成人 | 奇米影视四色8888 | 中文字幕在线一区二区三区 | 久久久久国产一区二区三区四区 | 日本黄色片一区二区 | 久久久久激情电影 | 69国产在线观看 | 美女网站在线播放 | 日韩v在线91成人自拍 | 国产大陆亚洲精品国产 | 久久99亚洲精品 | 国产成人久久精品77777综合 | a天堂最新版中文在线地址 久久99久久精品国产 | 日韩精品视频久久 | 国产精品手机在线观看 | 激情丁香久久 | 99精品久久只有精品 | 久久久久久久久久久久国产精品 | 日韩免费播放 | 久久免费播放视频 | 一区二区三区日韩在线 | 中文字幕在线专区 | 久久久久一区二区三区 | 蜜臀av性久久久久蜜臀aⅴ四虎 | 91精选在线观看 | 日韩免费福利 | 久久免费看a级毛毛片 | 亚洲成人av一区 | 中文字幕网址 | 亚洲爽爽网 | 国产精品自产拍在线观看网站 | 色偷偷88欧美精品久久久 | 一级电影免费在线观看 | www.久草视频| 国产黄色片在线 | 精品一区二区三区四区在线 | av一区在线播放 | 中文字幕资源网 | 国产免费嫩草影院 | 综合网在线视频 | 六月丁香综合网 | 玖操| 免费开视频 | 日批网站免费观看 | 丝袜av一区 | 探花视频在线观看+在线播放 | 亚洲伊人成综合网 | av电影在线不卡 | 999久久国产 | 黄色毛片大全 | 国产九九精品视频 | 九九热在线观看视频 | jizz999| 欧美了一区在线观看 | 中文在线中文资源 | 亚洲va欧美va国产va黑人 | 国产色影院| 国产黄在线免费观看 | 91资源在线播放 | 亚洲国产一区在线观看 | se视频网址 | 亚洲国产精品99久久久久久久久 | 国产理论一区二区三区 | 国产精品美女999 | 91免费日韩| 黄色成人小视频 | 中文区中文字幕免费看 | 久久99国产精品久久 | 中文字幕在线观看第一页 | 精品国产乱码久久久久久三级人 | 久久天天操 | 国产字幕av | 热99在线| 久久国内精品 | 99久久99久久精品免费 | 中中文字幕av在线 | 91精品久久久久久综合乱菊 | 九色视频网址 | 久久永久免费视频 | 国产小视频91 | 五月婷婷欧美 | 久艹在线播放 | 久久亚洲精品国产亚洲老地址 | 国产免费观看高清完整版 | 成人亚洲欧美 | 日韩激情一二三区 | 国产精品久久久久久久免费 | 亚洲一级黄色 | 精品国产一二三四区 | 免费精品国产va自在自线 | 亚州国产精品视频 | 日韩免费视频线观看 |
