MHK 1300FC/1350FC/1500FC/1650FC
Automatic Die Cutting Machine Linkage Production Line(Lead Edge Feeder)
Features Introduced
Converting System Integration means devices combined in line to reduce the manual work, optimize and speed up the flow of products within a single process. Among different modes of production lines, it is the most popular and practical mode in the global market with higher stability. In this system, the automatic prefeeder is one important part linked with the feeder of automatic diecutter to raise feeding efficiency and relieve the workload of operator at maximum that manual work cannot totally reach. The automatic breaker in line with the delivery unit of diecutter automatically separates blanks from multiple ups and save considerable labor costs compared to manual work. Along with the advantages in efficiency and cost, the system is especially able to be customized at particular client demands, products techniques and processes. Nowadays this sytem has become the new tendency interested by a large number of brand owners in the corrugated board packaging industry.

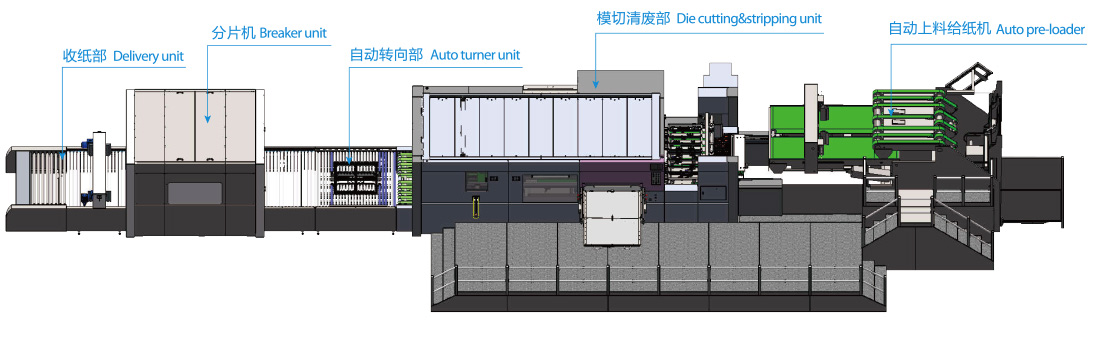

Partial Introduction
Auto pre-loader
Paper breaker
Main Technical Parameter
Technical parameters of paper feeder
| Model | MHK-1300FC | MHK-1500FC | MHK-1650FC |
| Sheel Size | Max. 1300×940mm Min. 550×450mm | Max. 1500×1100mm Min. 550×450mm | Max. 1650×1200mm Min. 650×450mm |
| Corrugated Board. Up To | Max. 8.5mm，Min. 1mm | Max. 8.5mm，Min. 1mm | Max. 8.5mm，Min. 1mm |
| Batch Height | Max. 1800mm | Max. 1800mm | Max. 1800mm |
| Pile Weight | 1000kg | 1200kg | 1400kg |
| Machine Weight | 3600kg | 3800kg | 4000kg |
Technical parameters of die cutting machine
| Model | MHK-1300FC | MHK-1350FC | MHK-1500FC | MHK-1650FC |
| Max. Sheet Size | 1290×940mm | 1350×1100mm | 1500×1100mm | 1650×1200mm |
| Min. Sheet Size | 470×450mm | 470×450mm | 470×450mm | 550×500mm |
| Max. Cutting Size | 1280×920mm | 1330×1080mm | 1480×1080mm | 1620×1180mm |
| Min. Gripper Margin | 9-17mm | 9-17mm | 9-17mm | 9-17mm |
| Min. Width of Cuts | 10-18mm | 10-18mm | 10-18mm | 10-18mm |
| Cutting Rule Height | 23.8mm | 23.8mm | 23.8mm | 23.8mm |
| Inner Chase Size | 1310×950mm | 1390×1120mm | 1510×1120mm | 1682×1220mm |
| Stock Range | Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper | Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper | Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper | Corrugated board: ≤8.5mm, E, B, C, A and AB corrugated paper |
| Die Cutting Accuracy | ≤±0.15mm | ≤±0.15mm | ≤±0.15mm | ≤±0.2mm |
| Max. Die Cutting Force | 400T | 400T | 400T | 400T |
| Max. Working Speed | 6000s/h | 6000s/h | 6000s/h | 5000s/h |
| Max. Delivery Pile Height | 1600mm(With pallet) | 1600mm(With pallet) | 1600mm(With pallet) | 1600mm(With pallet) |
| Main Motor Wattage | 11KW | 15KW | 15KW | 18.5KW |
| Full Load Wattage | 23KW | 28KW | 28KW | 32KW |
| Air Requirement | Pressure: 0.6~0.7Mpa, Flow: ≥0.75m3/min | Pressure: 0.6~0.7Mpa, Flow: ≥0.75m3/min | Pressure: 0.6~0.7Mpa, Flow: ≥0.75m3/min | Pressure: 0.6~0.7Mpa, Flow: ≥0.75m3/min |
| Net Weight of Machine | 22T | 24T | 25T | 27T |
| Machine Dimensions(Stacking Delivery) | 9180×5240×2767mm(L×W×H) (L: paper prepared track included, W: platform included) | 9680x5240x2803mm(L×W×H) (L: paper prepared track included, W: platform included) | 9680x5240x2803mm(L×W×H) (L: paper prepared track included, W: platform included) | 9939x5580x2932mm(L×W×H) (L: paper prepared track included, W: platform included) |
| Machine Dimensions(Batch Delivery Conveying) | 11110×5240×2767mm(L×W×H) (L: paper prepared track included, W: platform included) | 11644x5240x2803mm(L×W×H) (L: paper prepared track included, W: platform included) | 11664x5240x2803mm(L×W×H) (L: paper prepared track included, W: platform included) | 11799x5580x2932mm(L×W×H) (L: paper prepared track included, W: platform included) |
Sharding machine technical parameters
| Model | MHK-1300FC | MHK-1500FC | MHK-1650FC |
| Sheel Size | Max. 1300mm, Min. 550mm | Max. 1500mm, Min. 550mm | Max. 1650mm, Min. 650mm |
| Min. Batch Dimension In Machine Direction | 200mm | 200mm | 200mm |
| Max. Batch Thickness | 300mm | 300mm | 300mm |
| Min. Batch Thickness | 20mm | 20mm | 20mm |
| Batch Passage Height From The Floor | 900mm (adjustable) | 900mm (adjustable) | 900mm (adjustable) |
| Full PLC control |

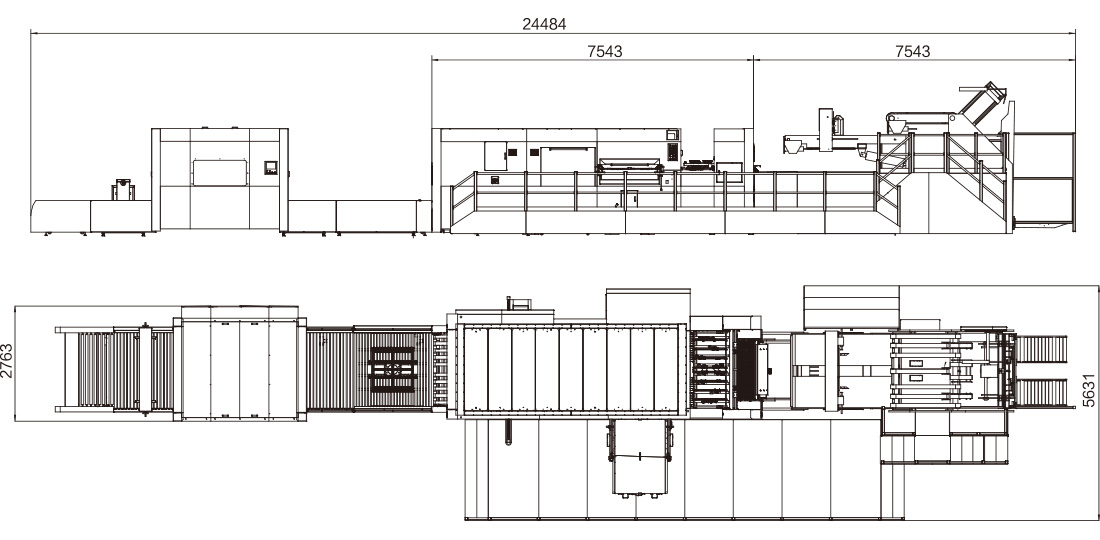

Drawing
