PRODUCT
C-1080BF
Semi-automatic Full Sheet Stripping & Blanking Machine
Features Introduced
The Dayuan C-1080BF Semi-automatic Full Sheet Stripping & Blanking Machine enables complete one-pass waste removal without mold changes, delivering high efficiency, easy operation, and greater production capacity.As long as products fall within the machine’s working size range, it can fully strip all die-cut waste in a single pass for various box types, window holes, aircraft holes, and waste edges of front and back stitching.
? One?pass full stripping and blanking, with high efficiency, easy adjustment and simple operation, greatly improving production capacity.
? The machine performs complete waste removal without mold changes. Its honeycomb plate frame and pins adapt to various box sizes and shapes. Lower pins support the product area while upper pins press the waste area for reliable stripping.
? Reduces labor, tooling and mold costs.
? The machine can fully strip waste from both front and back imposition in a single pass.
? Customizable upper working panel available to meet specific customer requirements.
Full Page Products collection
Partial Introduction

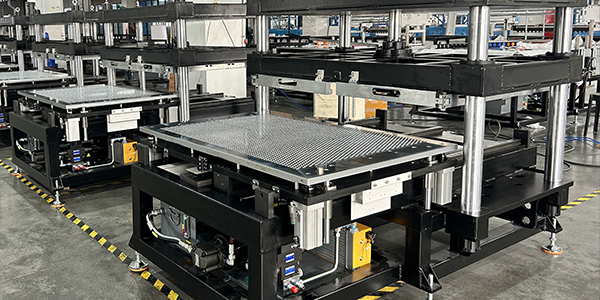

Robust Frame

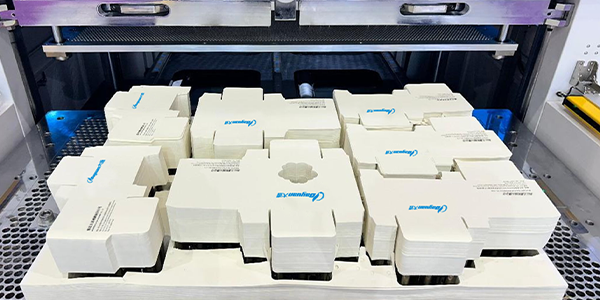

After Stripping &Blanking

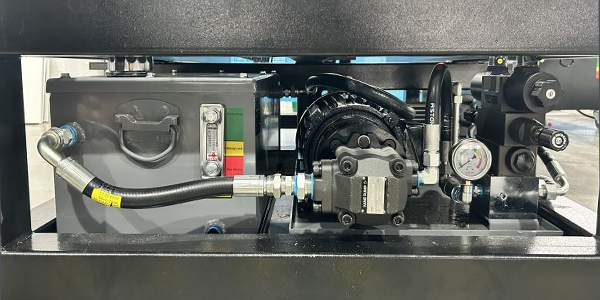

Hydraulic Oil System

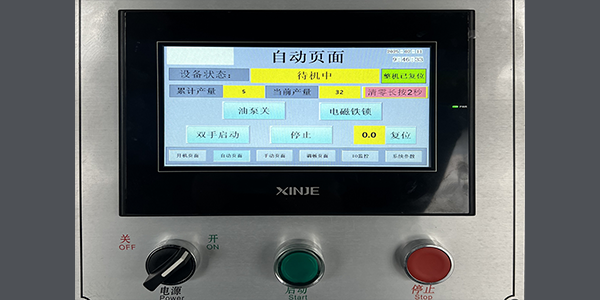

Touch Screen

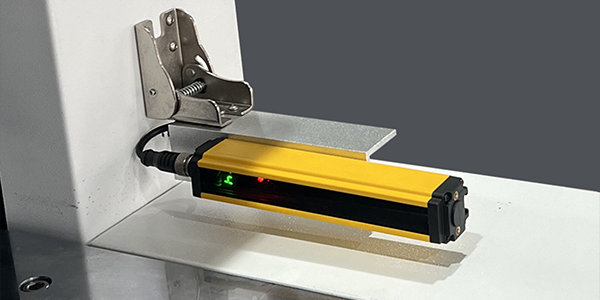

Product Detection Safety Grating

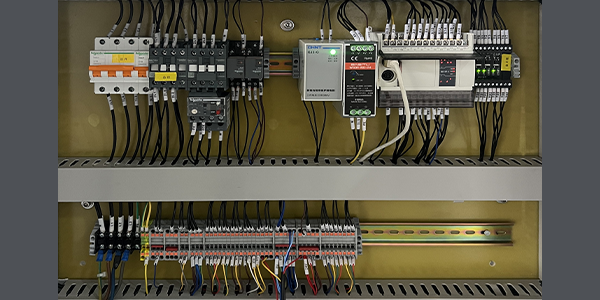

Electrical System
Main Technical Parameter
| Model | C-1080BF |
| Max. Material Stack Size | 1080×780 mm |
| Max. Stack Thickness | 80 mm |
| Max. Product Size | 1060×760 mm |
| Min. Product Size | 35×35 mm |
| Max Pressure | 100 kn |
| Speed | 1-5 times/min |
| Power Supply | 380V-3 phase-50/60HZ |
| Total Power | 4 kw |
| Average Power | 2.8 kw |
| Working Air Pressure | 0.5-0.6mpa |
| Air Consumption | 65L/min |
| Overall Dimensions | 2100×1760×1700 mm |
| Weight | 2580 kg |
Automatic Lifter Technical Parameters:
| Model | C-SLJ |
| Conveyor belt size | 1550×645 mm |
| Max Material Stack Height | 80 mm |
| Max Pressure | 100 Bar |
| Feeder size | 1550×910×1100 mm |
| Lifter size | 1200×1800×1000 mm |
| Weight | 550 KGS |
| Power | 380V/3 phase/50HZ |
| Total power | 3.7 kw |
